Product Specifications:
| Attribute |
Value |
| Rated Lifting Force |
10KN |
| Power Requirements |
220V/380V, 50Hz/60Hz |
| Capacity |
1000kg |
| Control Method |
Remote Control |
| Weight |
350KG |
| Maximum Lifting Speed |
10m/min |
| Cable Material |
Steel |
| Wire Rope Diameter |
8mm |
| Control System |
Remote control or pendant control |
| Certifications |
CE ISO |
| Material |
Steel |
Product Description:

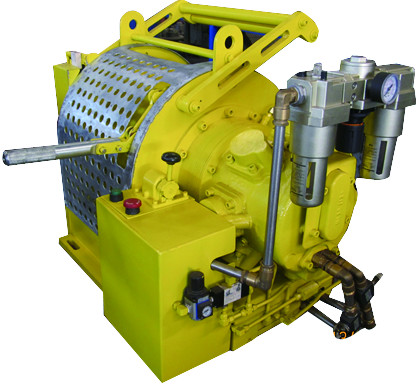

The Manrider Air Winch is a pneumatic motor-driven device integrated with a built-in planetary speed reducer. This core component enables the winch to efficiently drive its drum, empowering the equipment to fulfill reliable lifting and traction functions with stable performance during operation.
Engineered for dual-purpose functionality, the winch is capable of both personnel transport and heavy load handling. Its robust design and specialized performance make it a highly suitable solution for harsh working environments, particularly tailored to meet the rigorous demands of onshore and offshore oilfield operations.
Technical Specifications:
| Specification |
1.5kN |
5kN |
15kN |
20kN |
| Lifting speed |
0-30m/min |
0-24m/min |
0-20m/min |
0-20m/min |
| Steel rope diameter |
φ10mm |
φ10mm |
φ19mm |
φ19mm |
| Wire capacity |
150m |
150m |
130m |
130m |
| Overall dimensions (L×W×H) |
850×810×910 |
930×810×910 |
1350×810×910 |
1350×810×910 |
| Motor rated power |
1.8kW |
2.6kW |
16kW |
16kW |
| Pressure of compressed air |
0.25-0.8MPa |
0.25-0.8MPa |
0.25-0.8MPa |
0.25-0.8MPa |
| Maximum air consumption |
5m³/min |
5m³/min |
18.5m³/min |
18.5m³/min |
Brake system: Automatic disc brake + manual belt brake
Safety factors: 8:1 design factor for manned operations; 5:1 design factor for load handling. The minimum ratio of drum diameter to cable diameter is 18:1, preventing cable wear.
FAQ:
Q: What is the brand name of this Electric Winch?
A: The brand name is Juling.
Q: What is the model number of this Electric Winch?
A: The model number is DJFY.
Q: Where is this Electric Winch manufactured?
A: This Electric Winch is manufactured in China.
Q: What certifications does this Electric Winch have?
A: This Electric Winch is certified with CE, ABS, and API.
Q: What are the payment terms for purchasing this Electric Winch?
A: The payment terms are T/T.
